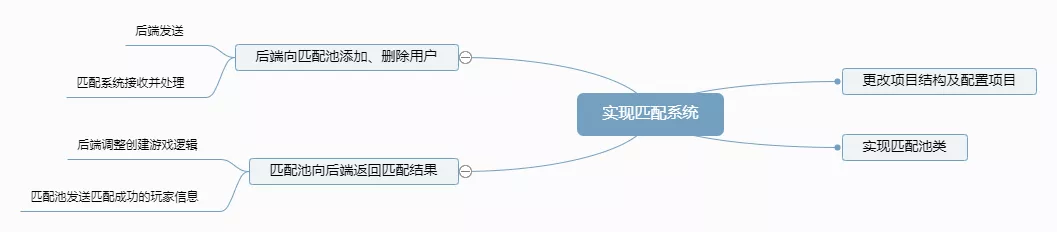

思维导图

实现匹配系统

更改项目结构

查看该历史版本

实现匹配池类

进入matchingsystem这个子项目里面。

在service/impl/utils/新建玩家类，因为匹配系统匹配的是玩家，需要这个辅助类。

1
2
3
4
5
6
7
8
9
10
11
12
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Player {
    private Integer userId;
    private Integer rating;
    private Integer waitingTime;
}

匹配池：匹配分数最接近的玩家，根据匹配时间增长，匹配范围逐渐增大。
操作：包括添加玩家，删除玩家，匹配玩家，发送给后端匹配成功的结果。
策略：为了防止匹配时间过长，优先将先匹配的玩家优先匹配，防止用户流失。

在matchingsystem/service/impl/utils下实现匹配池类。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.util.LinkedMultiValueMap;
import org.springframework.util.MultiValueMap;
import org.springframework.web.client.RestTemplate;

import java.util.ArrayList;
import java.util.List;
import java.util.concurrent.locks.ReentrantLock;

// 匹配池是多线程的
@Component
public class MatchingPool extends Thread {
    private static List<Player> players = new ArrayList<>();


    public void addPlayer(Integer userId, Integer rating) {

    }

    public void removePlayer(Integer userId) {

    }

    private void increaseWaitingTime() {
        // 将所有当前玩家的等待时间 + 1
    }

    private boolean checkMatched(Player a, Player b) {
        // 判断两名玩家是否匹配
    }

    private void sendResult(Player a, Player b) {
        // 返回匹配结果
    }

    private void matchPlayers() {
        // 尝试匹配所有玩家
    }

    @Override
    public void run() {
        while(true) {
            try {
                Thread.sleep(1000);
                // 涉及到操作players变量，加锁；
                lock.lock();
                try {
                    increaseWaitingTime();
                    matchPlayers();
                } finally {
                    lock.unlock();
                }
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
        }
    }
}

在项目入口中启动匹配线程

1
2
3
4
5
6
7
8
9
10
11
import com.kob.matchingsystem.service.impl.MatchingServiceImpl;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class MatchSystemApplication {
    public static void main(String[] args) {
        MatchingServiceImpl.matchingPool.start();   // 启动匹配线程
        SpringApplication.run(MatchSystemApplication.class, args);
    }
}

匹配池添加,删除用户

后端发送消息

之前在写了一个傻瓜式匹配，需要把和这个有关的代码全部重写

backend/consumer/WebSocketServer

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79

package com.kob.backend.consumer;

// 1.删除以下两个包
import java.util.Iterator;
import java.util.concurrent.CopyOnWriteArraySet;

@Component
// url链接：ws://127.0.0.1:3000/websocket/**
@ServerEndpoint("/websocket/{token}")  // 注意不要以'/'结尾
public class WebSocketServer {
    ...

    // 2.删除matchingPool变量

    ...

    @OnClose
    public void onClose() {
        // 关闭链接
        System.out.println("disconnected!");
        if(this.user != null) {
            users.remove(this.user.getId());
            // 3. 删除取消匹配逻辑
        }
    }

    // 4.抽取匹配成功后的逻辑为一个函数
    public static void startGame(Integer aId, Integer bId) {
        User a = userMapper.selectById(aId), b = userMapper.selectById(bId);
        Game game = new Game(13, 14, 20, a.getId(), b.getId());
        game.createMap();
        // 一局游戏一个线程，会执行game类的run方法
        game.start();

        users.get(a.getId()).game = game;
        users.get(b .getId()).game = game;

        JSONObject respGame = new JSONObject();
        // 玩家的id以及横纵信息
        respGame.put("a_id", game.getPlayerA().getId());
        respGame.put("a_sx", game.getPlayerA().getSx());
        respGame.put("a_sy", game.getPlayerA().getSy());
        respGame.put("b_id", game.getPlayerB().getId());
        respGame.put("b_sx", game.getPlayerB().getSx());
        respGame.put("b_sy", game.getPlayerB().getSy());
        respGame.put("map", game.getG());

        // 发送给A的信息
        JSONObject respA = new JSONObject();
        respA.put("event", "start-matching");
        respA.put("opponent_username", b.getUsername());
        respA.put("opponent_photo", b.getPhoto());
        respA.put("game", respGame);
        // 通过userId取出a的连接，给A发送respA
        users.get(a.getId()).sendMessage(respA.toJSONString());

        // 发送给B的信息
        JSONObject respB = new JSONObject();
        respB.put("event", "start-matching");
        respB.put("opponent_username", a.getUsername());
        respB.put("opponent_photo", a.getPhoto());
        respB.put("game", respGame);
        // 通过userId取出b的连接，给B发送respB
        users.get(b.getId()).sendMessage(respB.toJSONString());
    }

    // 5.删除原先匹配逻辑，把匹配的逻辑交给另一个服务，服务成功后再调用startGame函数开始游戏逻辑
    private void startMatching() {
        System.out.println("start matching!");
    }

    // 6.删除取消匹配逻辑
    private void stopMatching() {
        System.out.println("stop matching");
    }

    ...
}

取消完后就可以向匹配系统发送消息了。构造SpringCloud服务之间通信用的是RestTemplate

RestTemplate 是 Spring 提供的用于访问 Rest 服务的客户端，RestTemplate 提供了多种便捷访问远程 Http 服务的方法，能够大大提高客户端的编写效率。

backend/consumer/WebSocketServer编写发送函数

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
import org.springframework.web.client.RestTemplate;
import org.springframework.util.MultiValueMap;
import org.springframework.util.LinkedMultiValueMap;

@Component
// url链接：ws://127.0.0.1:3000/websocket/**
@ServerEndpoint("/websocket/{token}")  // 注意不要以'/'结尾
public class WebSocketServer {
    private static RestTemplate restTemplate;
    private final static String addPlayerUrl = "http://127.0.0.1:3001/player/add/";
    private final static String removePlayerUrl = "http://127.0.0.1:3001/player/remove/";

    ...

    @Autowired
    public void setRestTemplate(RestTemplate restTemplate) {
        WebSocketServer.restTemplate = restTemplate;
    }

    private void startMatching() {
        System.out.println("start matching!");
        MultiValueMap<String, String> data = new LinkedMultiValueMap<>();
        data.add("user_id", this.user.getId().toString());
        data.add("rating", this.user.getRating().toString());
        restTemplate.postForObject(addPlayerUrl, data, String.class);
    }

    private void stopMatching() {
        System.out.println("stop matching");
        MultiValueMap<String, String> data = new LinkedMultiValueMap<>();
        data.add("user_id", this.user.getId().toString());
        restTemplate.postForObject(removePlayerUrl, data, String.class);
    }

    ...
}

匹配系统接收并处理

接收

matchingsystem/service/下定义接口MatchingService。

1
2
3
4
5
6
7
8
9

package com.kob.matchingsystem.service;

public interface MatchingService {

    String addPlayer(Integer userId, Integer rating);

    String removePlayer(Integer userId);
}

matchingsystem/impl/下定义实现接口的类MatchingServiceImpl。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
import com.example.matchingsystem.service.MatchingService;
import com.example.matchingsystem.service.impl.utils.MatchingPool;
import org.springframework.stereotype.Service;

@Service
public class MatchingServiceImpl implements MatchingService {
    public final static MatchingPool matchingPool = new MatchingPool();
    @Override
    public String addPlayer(Integer userId, Integer rating) {
        System.out.println("add player: " + userId + " " + rating);
        matchingPool.addPlayer(userId, rating);
        return "add player success";
    }

    @Override
    public String removePlayer(Integer userId) {
        System.out.println("remove player: " + userId);
        matchingPool.removePlayer(userId);
        return "remove player success";
    }
}

matchingsystem/controller下定义控制器MatchingController类。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
matchingsystem/controller/MatchingController.java

package com.kob.matchingsystem.controller;

import com.kob.matchingsystem.service.MatchingService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.util.MultiValueMap;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import java.util.Objects;

@RestController
public class MatchingController {
    @Autowired
    private MatchingService matchingService;

    // 参数不能使用普通map，MultiValueMap和普通map的区别时，这个是一个键对应多个值
    @PostMapping("/player/add/")
    public String addPlayer(@RequestParam MultiValueMap<String, String> data) {
        Integer userId = Integer.parseInt(Objects.requireNonNull(data.getFirst("user_id")));
        Integer rating = Integer.parseInt(Objects.requireNonNull(data.getFirst("rating")));
        return matchingService.addPlayer(userId, rating);
    }

    @PostMapping("/player/remove/")
    public String removePlayer(@RequestParam MultiValueMap<String, String> data) {
        Integer userId = Integer.parseInt(Objects.requireNonNull(data.getFirst("user_id")));
        return matchingService.removePlayer(userId);
    }
}

由于 Spring Cloud 是 http 请求，所以可能会接收到用户的伪请求，matchingsystem 只能对于后端请求，因此需要防止外部请求，通过 Spring Security 来实现权限控制。具体方法就是只允许后端的IP地址访问。

经过上面的操作，匹配池就能收到后端的请求了。

处理

在匹配池类中实现add方法和remove方法。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
private static List<Player> players = new ArrayList<>();
private ReentrantLock lock = new ReentrantLock();

public void addPlayer(Integer userId, Integer rating) {
    //涉及到操作player，加锁
    lock.lock();
    try {
        players.add(new Player(userId, rating, 0));
    } finally {
        lock.unlock();
    }
}
public void removePlayer(Integer userId) {
    //涉及到操作player，加锁
    lock.lock();
    try {
        List<Player> newPlayers = new ArrayList<>();
        for (Player player : players) {
            if (!player.getUserId().equals(userId)) {
                newPlayers.add(player);
            }
        }
        players = newPlayers;
    } finally {
        lock.unlock();
    }
}

匹配池向后端返回匹配结果

匹配池判断匹配成功的逻辑

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82


import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.util.LinkedMultiValueMap;
import org.springframework.util.MultiValueMap;
import org.springframework.web.client.RestTemplate;

import java.util.ArrayList;
import java.util.List;
import java.util.concurrent.locks.ReentrantLock;
@Component
public class MatchingPool extends Thread{
    private static List<Player> players = new ArrayList<>();
    private ReentrantLock lock = new ReentrantLock();
    private static RestTemplate restTemplate;
    private static final String startGameUrl = "http://127.0.0.1:3000/pk/start/game/";

    @Autowired
    public void setRestTemplate(RestTemplate restTemplate) {
        MatchingPool.restTemplate = restTemplate;
    }

    private void increaseWaitingTime() { //辅助函数，等待时间+1
        for (Player player : players) {
            player.setWaitingTime(player.getWaitingTime() + 1);
        }
    }

    private boolean checkMatched(Player a, Player b) { //辅助函数，判断两名玩家是否匹配
        int ratingDelta = Math.abs(a.getRating() - b.getRating()); //分差
        int waitingTime = Math.min(a.getWaitingTime(), b.getWaitingTime());
        return ratingDelta <= waitingTime * 10;
    }

    private void matchPlayers() {
        System.out.println("matchPlayers: " + players.toString());
        //标记是否被匹配
        boolean[] vis = new boolean[players.size()];
        // 先枚举等待最久的玩家，恰好是players前面的玩家等待的的久
        for (int i = 0; i < players.size(); i++) {
            for (int j = i + 1; j < players.size(); j++) {
                if (vis[j] || vis[i]) continue;
                Player a = players.get(i), b = players.get(j);
                if (checkMatched(a, b)) {
                    vis[i] = vis[j] = true;
                    sendResult(a, b);
                    break;
                }
            }
        }

        //筛出来剩下的玩家
        List<Player> newPlayers = new ArrayList<>();
        for (int i = 0; i < players.size(); i++) {
            if (!vis[i]) {
                newPlayers.add(players.get(i));
            }
        }
        players = newPlayers;
    }

    @Override
    public void run() {
        while (true) {
            try {
                Thread.sleep(1000);
                lock.lock();
                try {
                    increaseWaitingTime();
                    matchPlayers();
                } finally {
                    lock.unlock();
                }
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
        }
    }


}

匹配池发送匹配结果

1
2
3
4
5
6
7
private void sendResult(Player a, Player b) { //返回匹配结果
    System.out.println("send result:" + a + " " + b);
    MultiValueMap<String, String> data = new LinkedMultiValueMap<>();
    data.add("a_id", a.getUserId().toString());
    data.add("b_id", b.getUserId().toString());
    restTemplate.postForObject(startGameUrl, data, String.class);
}

后端接收并处理

backend/service/pk定义接口StartGameService

1
2
3
public interface StartGameService {
    String startGame(Integer aId, Integer bId);
}

backend/service/impl/pk定义StartGameService类实现该接口

由于之前重构WebSocketServer类时，已经把创建新游戏的逻辑单独抽取出来，所以只需要调用该方法就好。

1
2
3
4
5
6
7
8
9
10
11
12
13
import com.example.backend.consumer.WebSocketServer;
import com.example.backend.service.pk.StartGameService;
import org.springframework.stereotype.Service;

@Service
public class StartGameServiceImpl implements StartGameService {
    @Override
    public String startGame(Integer aId, Integer bId) {
        System.out.println("start game:" + aId + " " + bId);
        WebSocketServer.startGame(aId, bId);
        return "start game success";
    }
}

backend/controller/pk下定义StartGameController实现控制器。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
import com.example.backend.service.pk.StartGameService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.util.MultiValueMap;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import java.util.Objects;

@RestController
public class StartGameController {
    @Autowired
    private StartGameService startGameService;
    @PostMapping("/pk/start/game/")
    public String startGame(@RequestParam MultiValueMap<String, String> data) {
        Integer a_id = Integer.parseInt(Objects.requireNonNull(data.getFirst("a_id")));
        Integer b_id = Integer.parseInt(Objects.requireNonNull(data.getFirst("b_id")));
        return startGameService.startGame(a_id, b_id);
    }
}

异常处理

假设A玩家在匹配成功前断开websocket链接，那么WebSocketServer类中的users表就会删除该玩家的websocketurl。但是，该玩家并没有在匹配系统中的匹配池中删除。

也就是说，该玩家依然会参与匹配，后端依然会接收到该玩家匹配成功的消息。

看下面这个函数

backend/consumer/WebSocketServer类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
public static void startGame(Integer aId, Integer bId) {
    User a = userMapper.selectById(aId), b = userMapper.selectById(bId);
    Game game = new Game(13, 14, 20, a.getId(), b.getId());
    game.createMap();
    users.get(a.getId()).game = game; //维护用户A的websocket
    users.get(b.getId()).game = game; //维护用户B的websocket
    game.start();

    JSONObject respGame = new JSONObject();
    respGame.put("a_id", game.getPlayerA().getId());
    respGame.put("a_sx", game.getPlayerA().getSx());
    respGame.put("a_sy", game.getPlayerA().getSy());
    respGame.put("b_id", game.getPlayerB().getId());
    respGame.put("b_sx", game.getPlayerB().getSx());
    respGame.put("b_sy", game.getPlayerB().getSy());
    respGame.put("map", game.getG());

    JSONObject respa = new JSONObject();
    respa.put("event", "start-matching");
    respa.put("opponent_username", b.getUsername());
    respa.put("opponent_photo", b.getPhoto());
    respa.put("game", respGame);
    users.get(a.getId()).sendMessage(respa.toJSONString()); //向前端发送信息

    JSONObject respb = new JSONObject();
    respb.put("event", "start-matching");
    respb.put("opponent_username", a.getUsername());
    respb.put("opponent_photo", a.getPhoto());
    respb.put("game", respGame);
    users.get(b.getId()).sendMessage(respb.toJSONString()); //向前端发送信息
}

函数会根据玩家的userId在users里找出该名玩家，显然这个返回值是null。如果不加特判，在上述边界情况下后端就会发生异常。

解决的方法也很简单，在调用users.get(userId)后，判断取出来的玩家是不是非null就行了。如果是null，就不往这个掉线的玩家的前端发信息。

这样的结果是另一名玩家不受影响，游戏照常玩，分数照样加。掉线的玩家就当挂机处理，听起来非常的符合逻辑。

修改backend/consumer/WebSocketServer类

1
2
3
4
5
6
7
8
9
10
11
if(users.get(a.getId()) != null)
    users.get(a.getId()).game = game;

if(users.get(b.getId()) != null)
    users.get(b .getId()).game = game;

if(users.get(a.getId()) != null)
    users.get(a.getId()).sendMessage(respA.toJSONString());

if(users.get(b.getId()) != null)
    users.get(b.getId()).sendMessage(respB.toJSONString());

修改backend/consumer/utils/Game类的sendAllMessage方法

1
2
3
4
5
6
private void sendAllMessage(String message) { //辅助函数，广播信息
    if (WebSocketServer.users.get(PlayerA.getId()) != null)
        WebSocketServer.users.get(PlayerA.getId()).sendMessage(message);
    if (WebSocketServer.users.get(PlayerB.getId()) != null)
        WebSocketServer.users.get(PlayerB.getId()).sendMessage(message);
}
